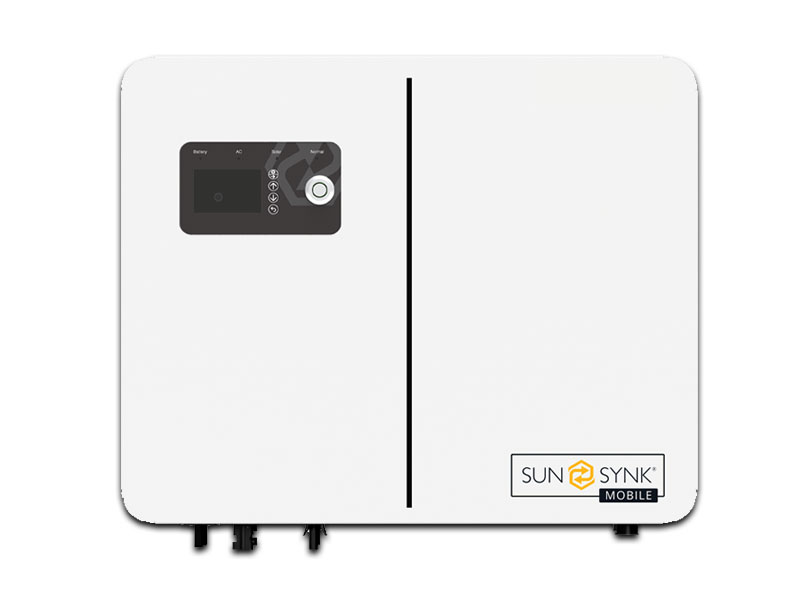

Sunsynk Lynks 8kW 48Vdc Single Phase IP41 Hybrid Inverter

• Rated Output Power: 8,000W continuous (16,000W / 16kVA peak surge) • Battery Compatibility: 48V low-voltage (40–60V range) supporting lithium-ion and lead-acid batteries with BMS communication • PV / DC Input: Max DC input of 10,000W with dual MPPT channels • Efficiency: 97.6% maximum efficiency (99.9% MPPT tracking) • Switch-over Time: 10ms for backup power mode • Enclosure Rating: IP41 protection • Dimensions & Weight: Approximately 570 x 525 x 140 mm and 24.5 kg to 28.5 kg depending on the exact sub-variant • Connectivity & Monitoring: Wi-Fi dongle included for real-time monitoring via the Sunsynk Connect platform
