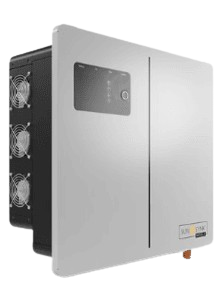

Sunsynk Lynks Pro 2nd Generation 12kW 3Phase iP65 Hybrid Inverter

• Rated Output Power: 12,000W (12kW) three-phase output • Battery Compatibility: 48Vdc low-voltage battery systems (operating range typically 40–60V DC) • Solar PV Input: Maximum DC input power of up to 18kWp • MPPT Configuration: Dual MPPT with 30A rated input current per MPPT • Max DC Voltage: 500V DC (startup voltage at 150V) • Surge Capability: 24kW for 1 second • Efficiency: 97.6% Euro efficiency • Enclosure & Protection: IP65-rated weatherproof housing for indoor or outdoor installation • Interface & Extras: Touchscreen LCD with a new user interface, built-in Wi-Fi monitoring dongle, CT clamp, and integrated DC switch. • Flexibility: Supports conventional solar PV, wind turbines, and micro-inverters. • Standards & Warranty: NRS097 approved (for South African grid compliance) with a 5-year standard warranty.
