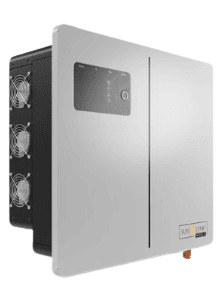

Sunsynk Pro 2nd Generation 12kW 48Vdc Single Phase Hybrid Inverter

• Rated Output Power: 12,000W (12kW) • Peak Output Apparent Power: 24,000VA • Nominal Battery Voltage: 48V (compatible with LiFePO4 and lead-acid batteries, operating range 40V–60V) • Maximum Charge / Discharge Current: 220A charge / 260A discharge • Maximum DC PV Input Power: 18,000W (18kWp) • MPPT Channels: Dual MPPT (30A per channel or 60A total) with an MPPT voltage range of 120V–500V (start-up at 150V) • Maximum Inverter Efficiency: 97.6% • Switchover / Transfer Time: Fast 10ms transfer time for backup loads • Enclosure Rating: IP65 weatherproof design for indoor or outdoor installation • Interface: High-resolution touchscreen LCD with an improved user interface and built-in Wi-Fi • Dimensions & Weight: 620 x 585 x 255 mm; 36 kg
